ULTRA PORTABLE 6-AXIS MOTION CONTROL ROBOTICS FOR HIGH-END FILM, TV & COMMERCIALS

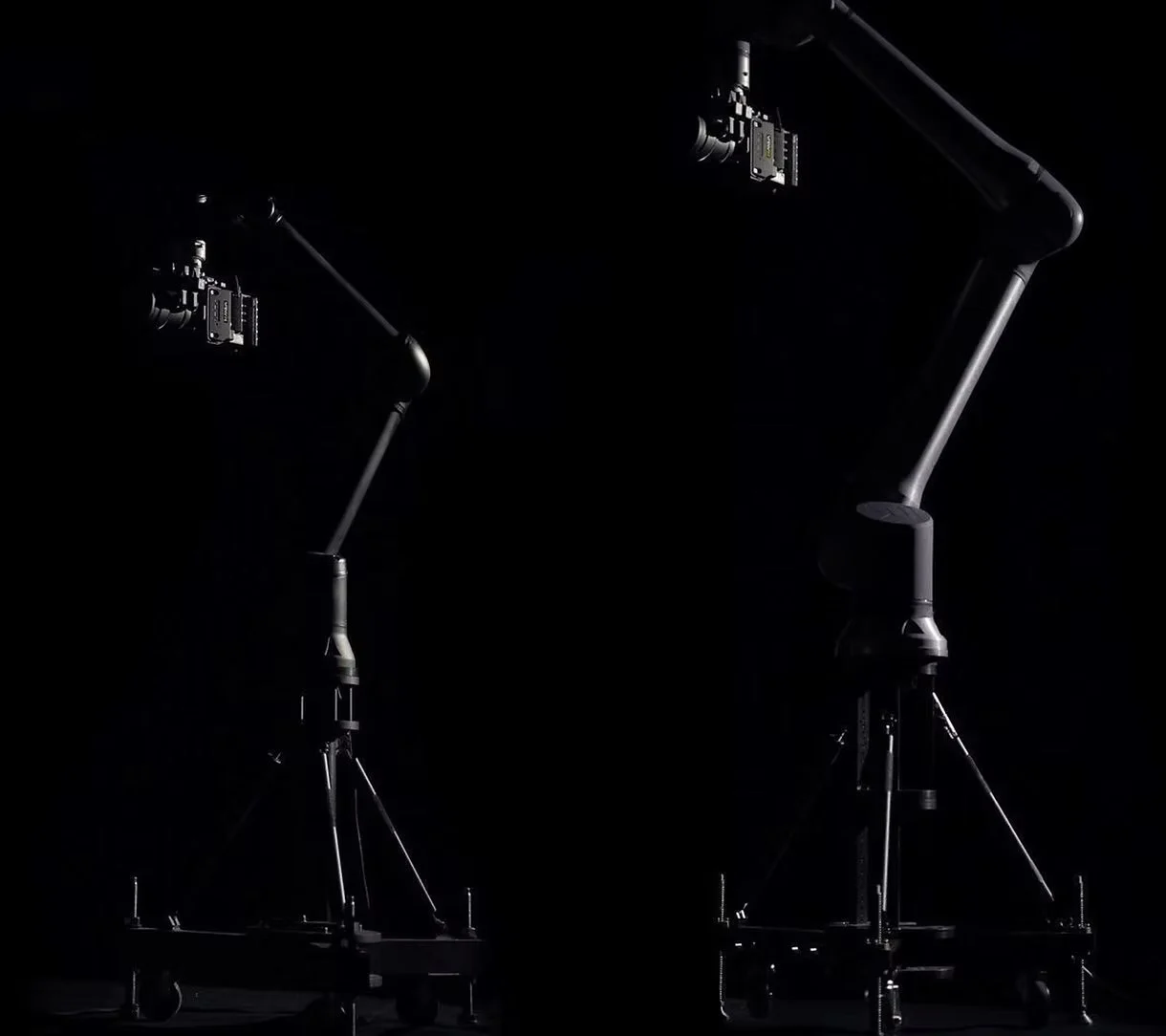

‘Slim’ is the most capable, portable robotic motion control solution available today. It provides the power of programmable, repeatable motion anywhere in the world

KEY FEATURES

Highly Capable: Steady 6-axis motion control at up to 3 meters per second. Frame accurate repeatable moves that can be saved to come back to later (change of lighting/season/subject)
Lightweight & Portable: Compact, lightweight, and easily portable. From tabletops in the smallest of rooms to mountain tops in the wildest, most remote locations. You can literally take it anywhere.
Battery Power: Can run off two 98Wh flight safe V-lock batteries. A set of 2 batteries per 2 hours of power.
Torque Head: Able to manually hand move camera to keyframe positions.
No PC or laptop required: Quick setup and programming with no additional PC or laptop required.
Flight Compliant: As well as being able to run off flight safe V-lock batteries, SLIM packs down in airline weight compliant cases (less than 32kg) so there’s no limit on where you can go.
Remote Operation: SLIM can be operated (via ethernet cable) hundreds of meters away from the crew to capture those more sensitive subjects.

KEY SPECIFICATIONS

Reach of 2.6 meters [8.5 feet] with a 1.3 meter [4.25 feet] radius
Speeds up to 3 m/s
6 axis control (X, Y, Z, Pan, Tilt, Roll)
Integrated lens control (Focus, Iris, Zoom - Arri or Nucleus)
Camera payload up to 12.5kg (Phantom, Red, Arri, Sony, ZCam etc)
Mains power - 110VAC-240VAC, Single Phase, ~400 Watts peak, ~100 Watts idle
Robot Arm weighs 33.5Kg
Packs down into only 3 cases (6 cases if flying)
Standard Mitchell Mount (can be mounted from ceiling, wall or vehicle)
Synchronised outputs available
More features on the way including programable track and an industry first, our ‘FreeFly’ control system.
Bristol & London based but available to travel all over the world
